Solar Energy- The Need

Solar energy is the radiant energy from the Sun's light and heat, which can be harnessed using a range of techologies such as solar electricity. It is an essential source of renewable energy, and its technologies are broadly characterized as either passive solar or active solar depending on how they capture and distribute solar energy or convert it into solar power.

Renewable and Sustainable

Solar Energy is infinite — the sun will keep shining for billions of years. Unlike coal or oil, it won't run out.

Environment-Friendly

No pollution: It doesn’t emit carbon dioxide or harmful gases.Helps reduce global warming and fight climate change.

Reduces Electricity Bills

After installing solar panels, you can generate your own electricity.It reduces your dependency on the power grid and lowers monthly bills.

Why Choose RUDRANSH ENERGIES?

Expertise

Our team of experts has over 15 years of experience in the solar installation industry. We're committed to providing high-quality services and innovative solutions to meet your energy needs.

Affordability

We believe that everyone should have access to clean, renewable energy. That's why we offer competitive pricing and financing options to make solar energy affordable for all.

Custom Solutions

We understand that every home and business is unique. That's why we take a personalized approach to every project we take on, designing custom solutions that meet your specific energy needs.

Sustainable Energy Solutions for Your Home and Business

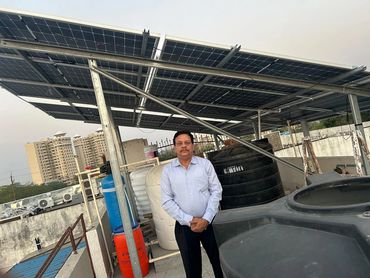

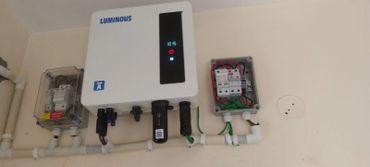

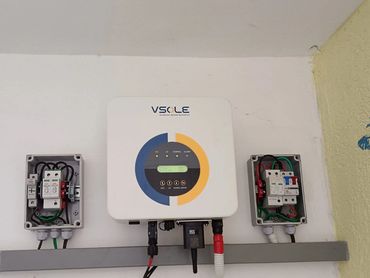

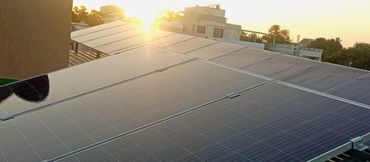

Residential Solar Panel Installation

At RUDRANSH ENERGIES, we offer comprehensive residential solar panel installation services. Our team of experts will work with you to design a system that meets your energy needs and fits your budget.

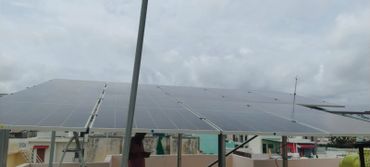

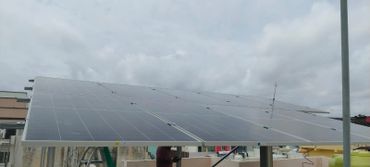

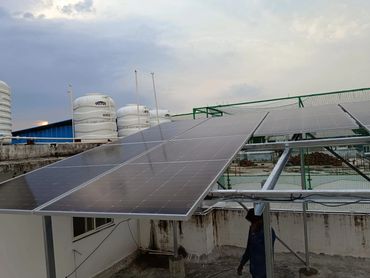

Commercial Solar Panel Installation

Our commercial solar panel installation services can help you reduce your energy costs and improve your bottom line. We use only the highest quality materials and offer competitive pricing and financing options to fit your needs.

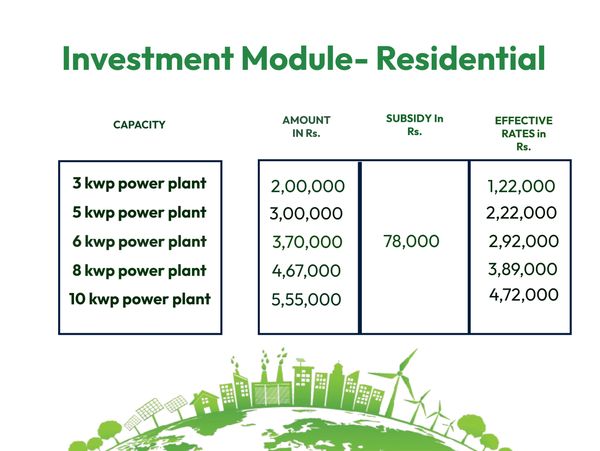

INVESTMENT

Above Mention Cost Includes :

1 Structure : Galvanized with 80 mm legs and 40 mm perlins

2 Cable Length : AC-25 meters,

DC - 25 meters

3 Earthing Cable : 1 core 4 sq mm -

1 bundle with copper rods and

chemical bag . Any changes in cable length or structure and work related to MPEB will cost EXTRA

**NOTE : Above mention price are subjected to change with out any prior notice

Above Mention Cost Includes :

1 Structure : Galvanized with 80 mm legs and 40 mm perlins

2 Cable Length : AC-25 meters,

DC - 25 meters

3 Earthing Cable : 1 core 4 sq mm -

1 bundle with copper rods and

chemical bag.Any changes in cable length or structure and work related to MPEB will cost EXTRA

**NOTE : Above mention price are subjected to change with out any prior notice

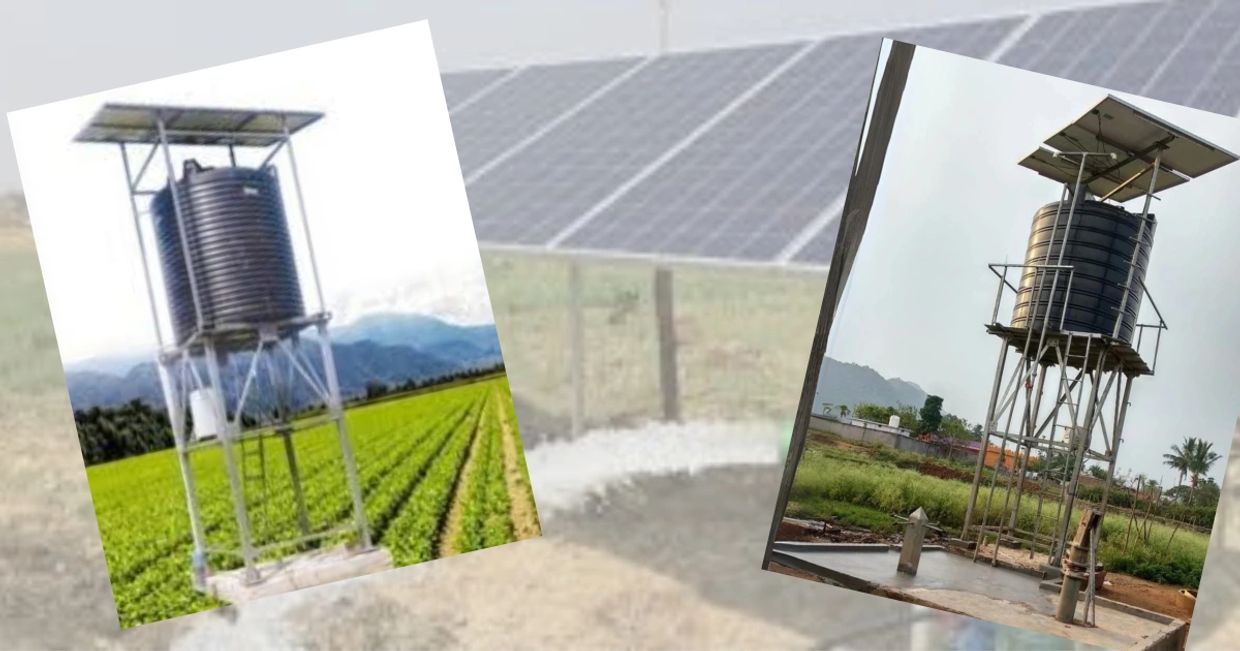

SOLAR DUAL PUMPING SYSTEM

AN Introduction

Solar Dual Pump is an innovative pump designed to utilize the power of the sun during the day and act as a normal hand pump when the solar energy is not available, hence assuring uninterrupted water supply for drinking, sanitation, personal hygiene etc. The system consists of a submersible pump which runs on power generated from the photo-voltaic solar cells and is suitable for use on bore-wells with 100 mm (and above) diameter up to 80-90 meters depth. In practice a solar array is installed near the bore-well, a submersible pump powered with DC motor is installed below the hand pump cylinder. The pump is connected to a storage tank and the collected water is dispensed through a stand post. This system can also be used on other water sources such as open wells or tanks.

SOLAR DUAL PUMP CONCEPT

System

Solar Energy based dual water pumping system (Solar Pump + Hand pump) is being installed and in progress under various indigenous projects for water supply in far flung areas, for irrigation etc. The system consists of two major parts, Submersible Pump arrangement with Solar Panel & accessories, Hand-pump arrangement.

Construction

This system require a suitable DC motor driven vertical submersible pump deep in sump, powered by Solar panel directly through electronic controller. Riser piping lines connected with the hand pump as well as the submersible pump, on which further continues to over head tank kept on the Steel structural platform for water storage and utilization at night or whenever required. Solar panel of suitable parameter according to the requirement of submersible Pump power supply is being selected and installed on the same steel structure to harvest maximum sunlight to generate electricity of desired parameters. All electrical cables, control panel, automatic ON/ OFF and all safety protections for the Pump installed in the system. All GI,UPVC water piping and fittings, taps are considered.

Working

The submersible pump is suitable for pumping out subsoil water from 50m below the ground. DC supply of required parameter is fed to the submersible pump directly from the solar panel for pump operation. The pump is connected through all safety protections e.g. over voltage, over current, over flow trip etc. In the day time when sunlight is available, solar pump operates continuously and its discharge fills the overhead tank. As the tank is filled up, pump will be stopped automatically as the level sensor installed in the control system and in same way pump starts automatically when the tank water level goes below pre set low level. Stored water can be fetched at any time from the tap post located nearer to the arrangement. Whenever there is no water in the tank and at night hand pump can be operated manually for water; this provision is kept to suffice the water requirement in order to handle any emergency situation.

DUAL PUMP-The Need

Applications

Community rural water supply
Public water supply for peri-urban areas
School water supply
Institutional water supply in remote areas
Emergency water supply for relief camps

Advantages

Self sustainable, independent water supply scheme
Time savior for women and family
Better health on account of low manual work
Improved personal hygiene & sanitation due to availability of water
Better education (improved attendance) in schools.No electricity charges, No running cost
Independent of grid power supply
Can be installed in far flung areas.
Low maintenance
